LF1325-BS4 (1.32.5m/48ft) WorkStation Applicator

Max Lamination Width: 1300mm/4.26ft
Max Lamination Length: 2500mm/8.20ft
Max Lamination Thickness: 50mm/1.96”
Lamination Temp: 0~60°C/0~140°F
Roller Up and Down: Pneumatic Pressure.

+86 136 5371 9152

info@lefulaminator.com

Contact Us

Related Products

Product Description

Technical Data

LeFu LF1325-BS4 (1.3*2.5m/4.2*8.2ft) Warm and Cold WorkStation Applicator Working Video

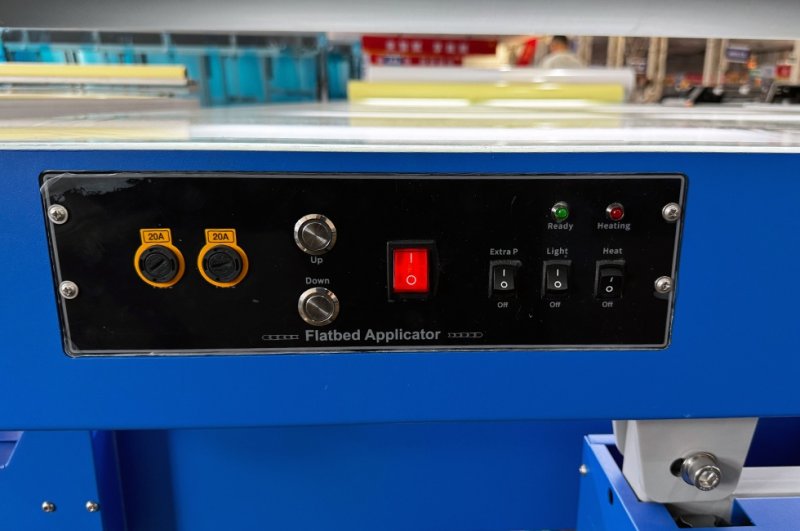

Intelligent Control Panel

LeFu LF1325-BS4 60C Warm and Cold Flatbed Applicator, Max Lamination Width: 1300mm/4.26ft, Max Lamination Length: 2500mm/8.20ft. Max Lamination Thickness: 50mm/1.96''Lamination Temp: 0~60°C/0~140°F, Roller Up and Down: Pneumatic Pressure.

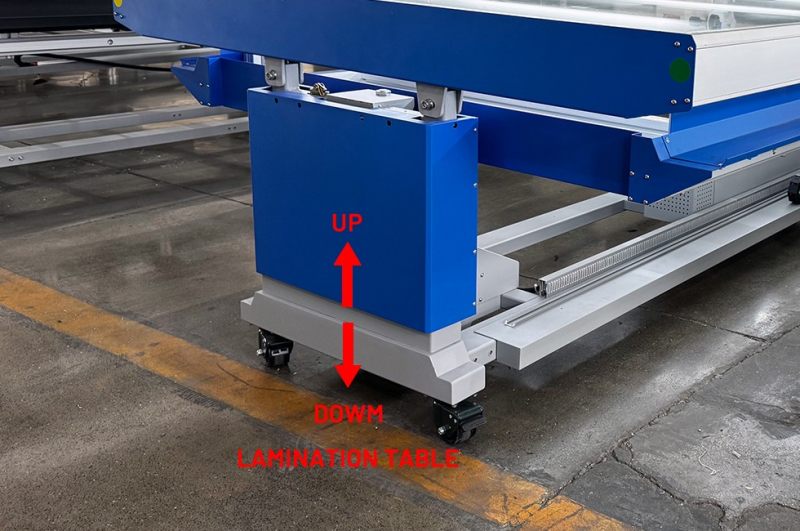

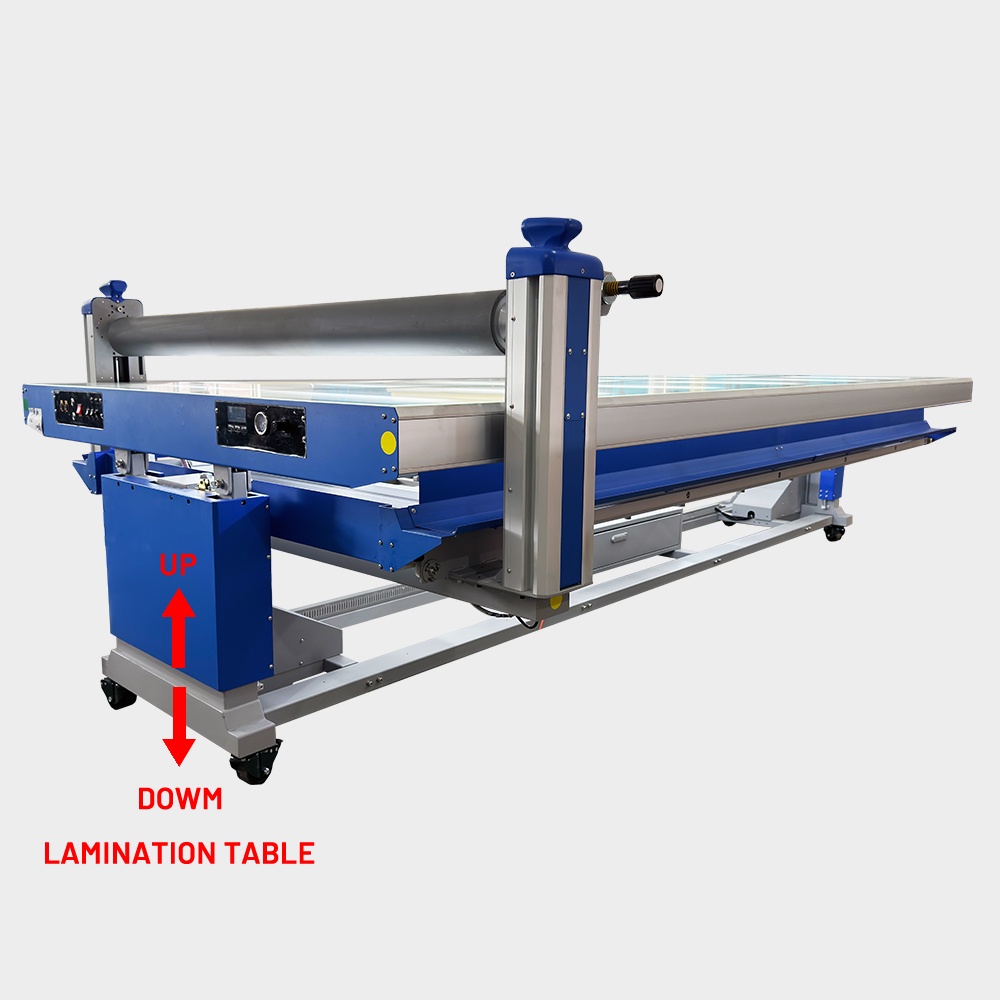

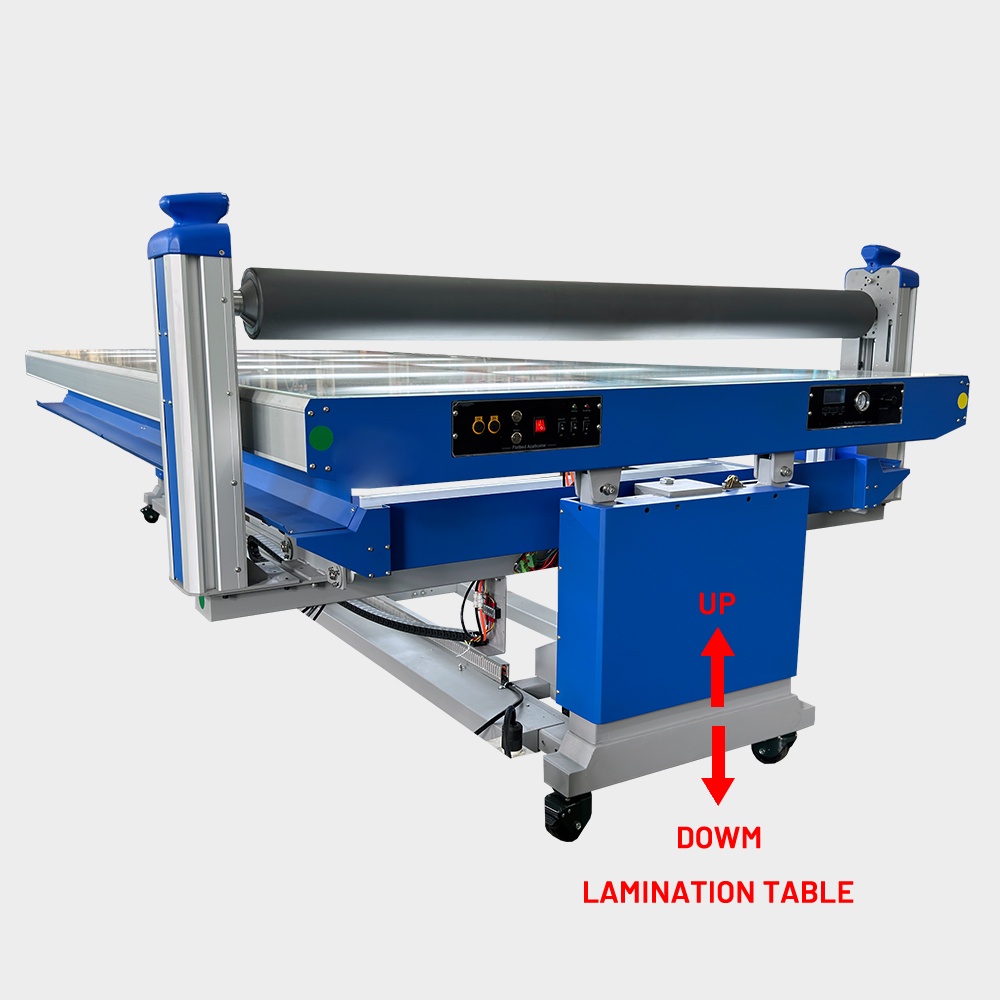

Electric Up and Down Table

LeFu LF1736-BS4 60C Warm and Cold Flatbed Applicator with electrically driven worktable that adjusts its height vertically at the push of a button, letting operators set the most ergonomic working position for loading heavy boards or laminating at a comfortable level.

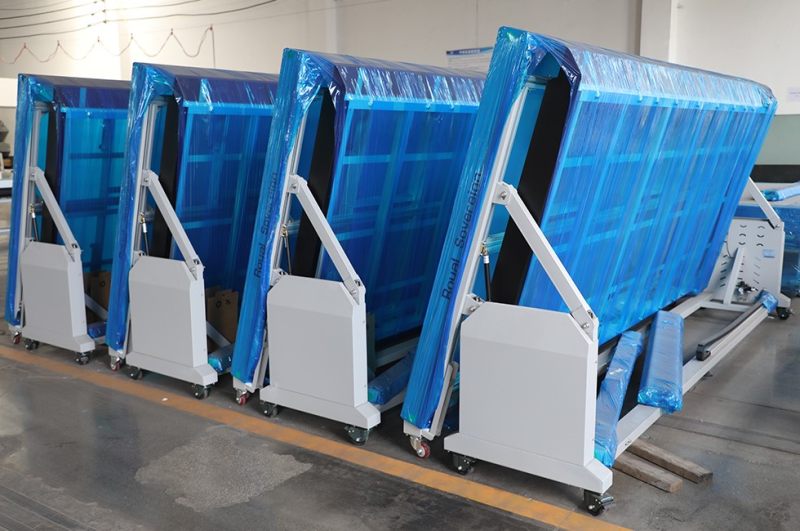

Tilted Table
LeFu LF1736-BS4 Flatbed Applicator, Tilted Bed design of the LeFu flatbed laminator is primarily engineered to save shipping and storage space.

Rear Media Roll Holder

LeFu LF1736-BS4 60C Warm and Cold Flatbed Applicator with rear Media Roll Holder is mounted at the back of the LeFu flatbed laminator to securely support rolls of lamination film. It ensures smooth and continuous film feeding during operation, preventing wrinkles and misalignment.

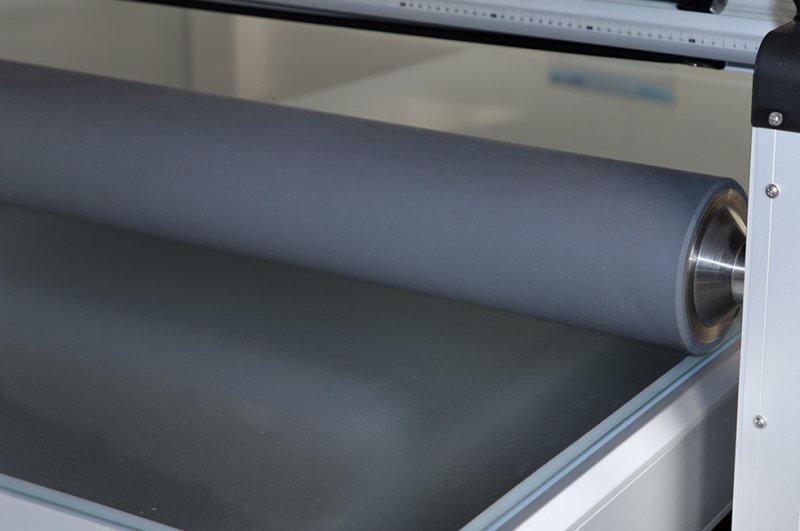

Premium Silicone Roller
LeFu LF1736-BS4 60C Warm and Cold Flatbed Applicator use 130mm diameter solid steel core wrapped with high-quality silicone. Its large size ensures even pressure distribution across the entire substrate, effectively eliminating bubbles and wrinkles during lamination.

Illumination Led Lights Under Table
LeFu LF1736-BS4 60C Warm and Cold Flatbed Applicator with LED Lights backlighting allows operators to see through translucent materials such as window films and lightbox prints, enabling precise alignment of graphics and edges.

Model	LF1325-BS4 Flatbed Warm Applicator
Lamination Type	Warm & Cold
Lamination Temp (°C/°F)	0~60°C/0~140°F
Table Min Adjust Height (mm/inches)	940mm(37.01''/3.08ft)
Table Max Adjust Height (mm/inches)	1140mm(44.88''/3.74ft)
Max Lamination Width (mm/inches)	1300mm (51.18”/4.26ft)
Max Lamination Length (mm/inches)	2500mm (98.42”/8.20ft)
Table Size (mm/inches)	1400 (55.11”/4.59ft)*3000mm (118.11”/9.84ft)
Max Lamination Thickness	50mm/1.96''
Laminating Type	Flat Mounting
Heating Roller	Top
Roller	Silicon
Diameter of Upper Roller (mm/inches)	130mm/5"
Pressure/Height Adjust	Pneumatic
Working Type	Manual
Certificate	CE, RCM, ROHS
Heating	Infrared
Preheating Time	10-15 min
Voltage	AC110V-240V 50HZ-60HZ
Working Size (mm/ft)	341016601215mm (11.15.43.9ft)
Package Size (mm/ft)	340011401800=7.2CBM (11.13.75.9ft)
Weight (kgs/lbs)	N.W: 400kgs( 882lbs) G.W: 500kgs( 1102lbs)
