LF1740-B4 (1.6*4.0m/5*13ft) Customized Flatbed Applicator

  • LF1740-B4 (1.6*4.0m/5*13ft) Customized Flatbed Applicator
  • LF1740-B4 (1.6*4.0m/5*13ft) Customized Flatbed Applicator
  • LF1740-B4 (1.6*4.0m/5*13ft) Customized Flatbed Applicator
  • LF1740-B4 (1.6*4.0m/5*13ft) Customized Flatbed Applicator
  • LF1740-B4 (1.6*4.0m/5*13ft) Customized Flatbed Applicator

LF1740-B4 (1.6*4.0m/5*13ft) Customized Flatbed Applicator

Max Lamination Width: 1600mm/5.24ft
Max Lamination Length: 4000mm/13.12ft
Max Lamination Thickness: 50mm/1.96”
+86 136 5371 9152
info@lefulaminator.com
Contact Us
Related Products
Product Description
Technical Data

LeFu LF1740-B4 (1.6*4.0m/5*13ft) 60C/148F Warm and Cold Customized Flatbed Applicator Working Video

30101

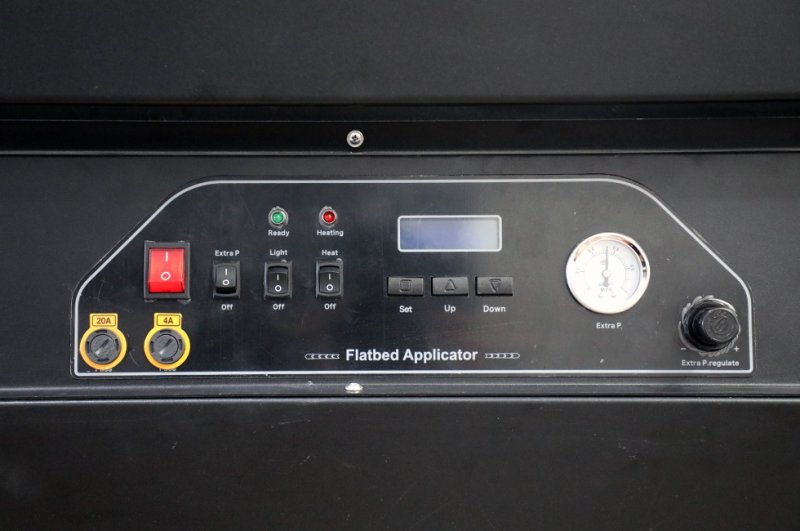

Intelligent Control Panel

LeFu LF1740-B4 Customized Flatbed Applicator, Max Lamination Width: 1600mm/5.24ft, Max Lamination Length: 4000mm/13.12ft. Max Lamination Thickness: 50mm/1.96''Lamination Temp: 0~60°C/0~140°F, Roller Up and Down: Pneumatic Pressure.

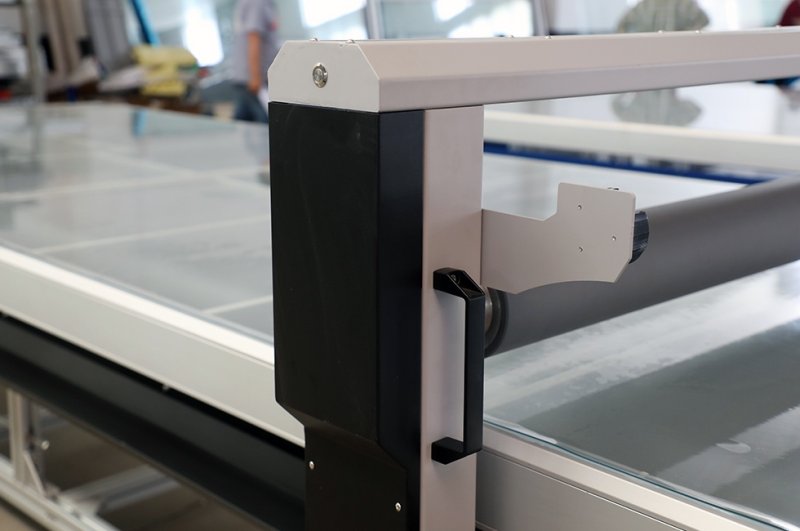

Double Pneumatic Lifting Switch

LeFu LF1740-B4 60C Warm and Cold Flatbed Applicator with Double Pneumatic Lifting Switch​ features control buttons on both sides of the machine, allowing operators to raise or lower the rubber rollers from either side with ease.

30102
30103

Aluminum Alloy Lamination Table
LeFu LF1740-B4 Flatbed Applicator, lightweight yet sturdy work surface made of aluminum alloy, providing a flat, rust-proof, and durable platform for placing and aligning substrates during lamination.

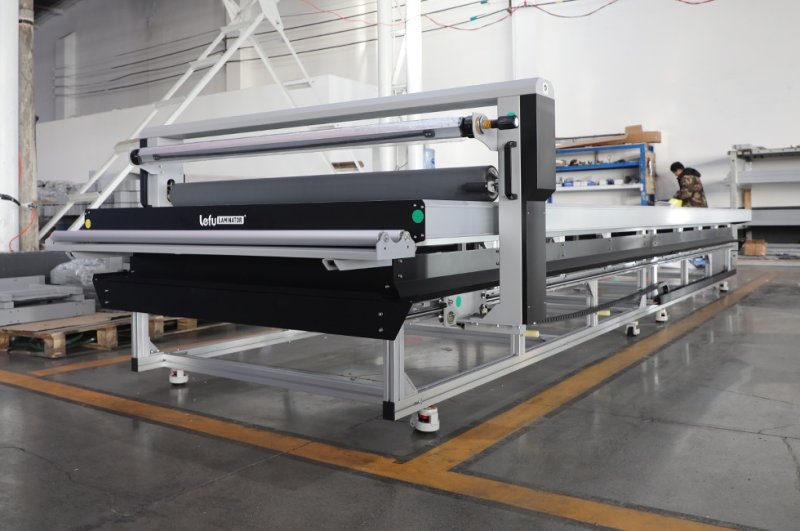

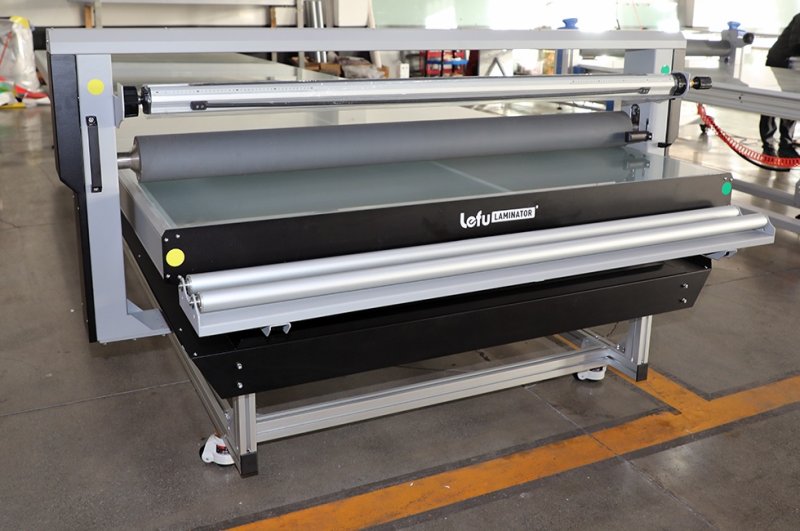

Rear Media Roll Holder

LeFu LF1740-B4 60C Warm and Cold Flatbed Applicator with rear Media Roll Holder​ is mounted at the back of the LeFu flatbed laminator to securely support rolls of lamination film. It ensures smooth and continuous film feeding during operation, preventing wrinkles and misalignment.

30104
1024

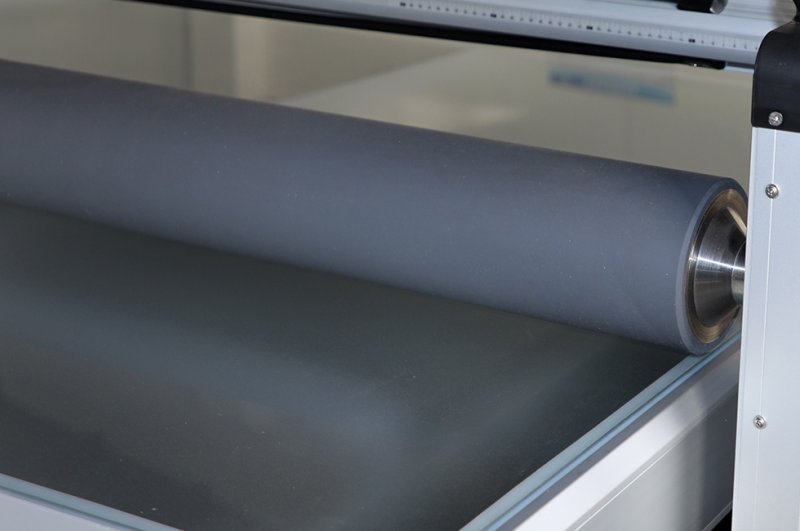

Premium Silicone Roller
LeFu LF1740-B4 60C Warm and Cold Flatbed Applicator use 130mm diameter solid steel core wrapped with high-quality silicone. Its large size ensures even pressure distribution across the entire substrate, effectively eliminating bubbles and wrinkles during lamination.

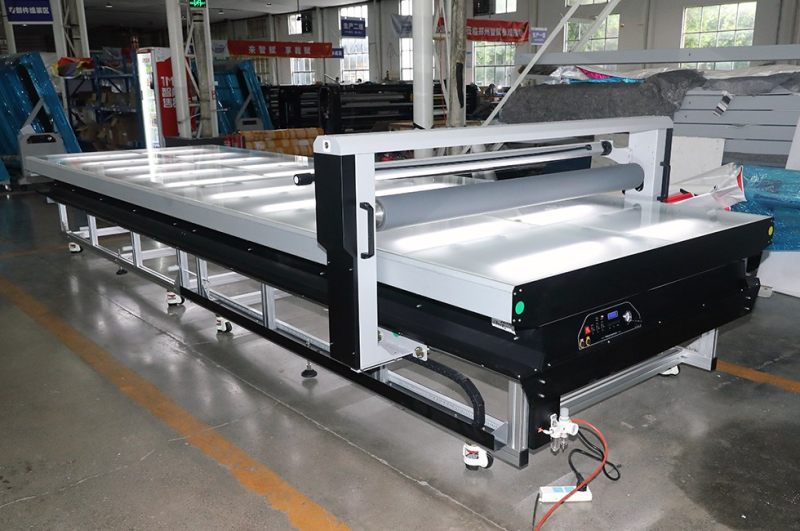

Illumination Led Lights Under Table
LeFu LF1740-B4 60C Warm and Cold Flatbed Applicator with LED Lights backlighting allows operators to see through translucent materials such as window films and lightbox prints, enabling precise alignment of graphics and edges.

1025

Model

LF1740-B4 Customized Flatbed Warm Applicator


Lamination TypeWarm & Cold

Lamination Temp (°C/°F)

0~60°C/0~140°F


Max Lamination Width (mm/inches)

1600mm (62.99''/5.24ft)

Max Lamination Length (mm/inches)4000mm (157.48"/13.12ft)
Table Size (mm/inches)1700mm(66.92"/5.57ft)*4200mm(165.35"/13.77ft)
Max Lamination Thickness50mm/1.96''

Laminating Type

Flat Mounting

Heating RollerTop

Roller

Silicon

Diameter of Upper Roller (mm/inches)

130mm/5"

Pressure/Height Adjust

Pneumatic

Working TypeManual

Certificate

CE, RCM, ROHS

Heating

Infrared

Preheating Time

10-15 min

VoltageAC110V-240V   50HZ-60HZ
Working Size (mm/ft)4500*2030*1235mm( 14.7*6.6*4ft)
Package Size (mm/ft)2500*1200*2100=6.3CBM*2Sets (8.2*3.9*6.8ft)*2Sets

Weight (kgs/lbs)

N.W: 600kgs (1322lbs)  G.W: 800kgs (1763lbs)


Top 9 Reasons Why Customers Choose  :

LeFu focus on Flatbed Applicator, Flatbed Laminator, Roll Laminator, Automatic Laminator from 2006.

Every year more than 4000 sets flatbed applicator, automatic laminaotrs are sold to world market.

Pre-sales team provides guidance to help customers choose laminator model based on their specific requirements.

We are looking forward to establish a cooperative, friendly  and long time relationship.

LeFu has a skilled team of engineers specializing in mechanics, pneumatics, and automation.

Remote diagnostic services on select models. Technicians can monitor machine data online, diagnose faults.

After you received the laminator, we will set up tech support group and put engineers in group.

Laminator will come with easy broken parts and installation tools box. No need order extra tools during installation.

2 years guarrante time, during guarrante time, without man made reason, we will send you parts freely.

Csutomer Recevied Laminator

1031
1032

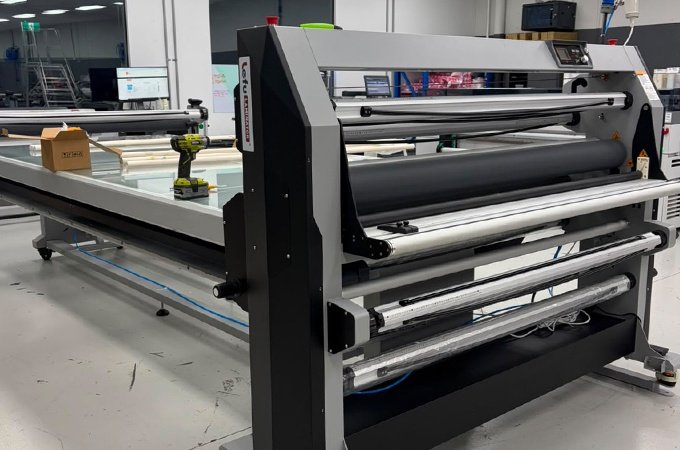

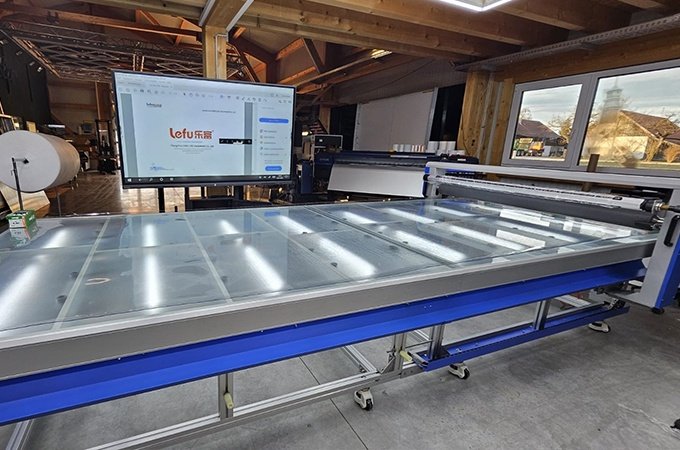

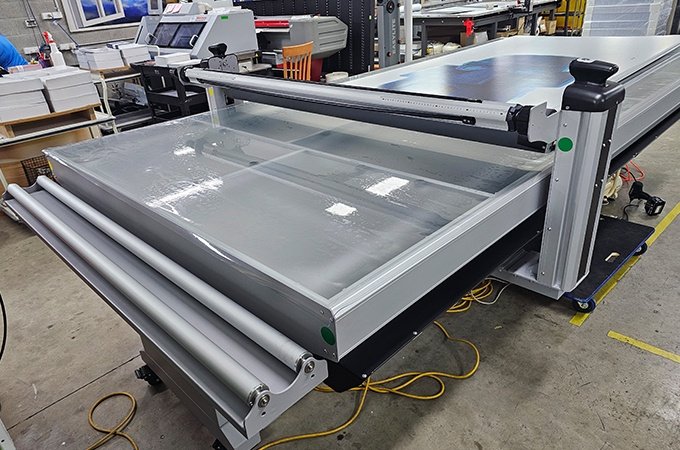

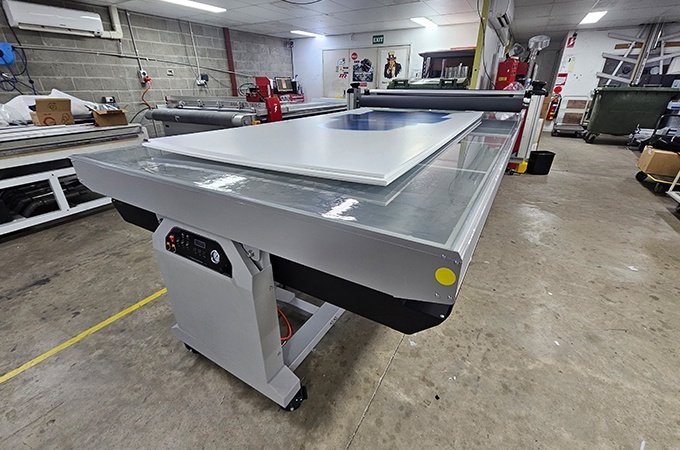

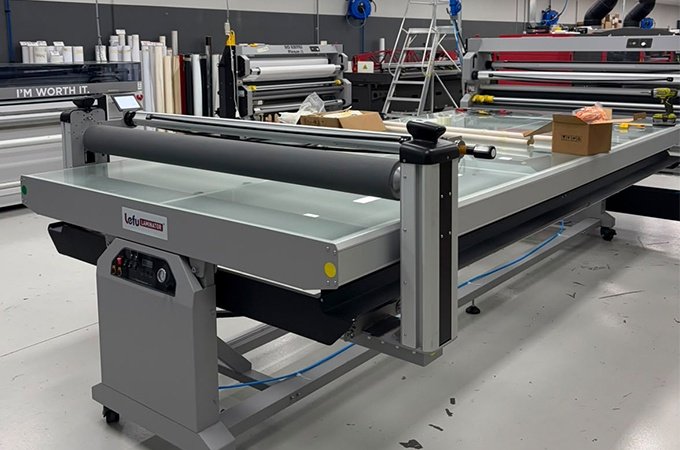

Laminator in Customer Workshop

1033
1034
1035
1036
1037
1038
