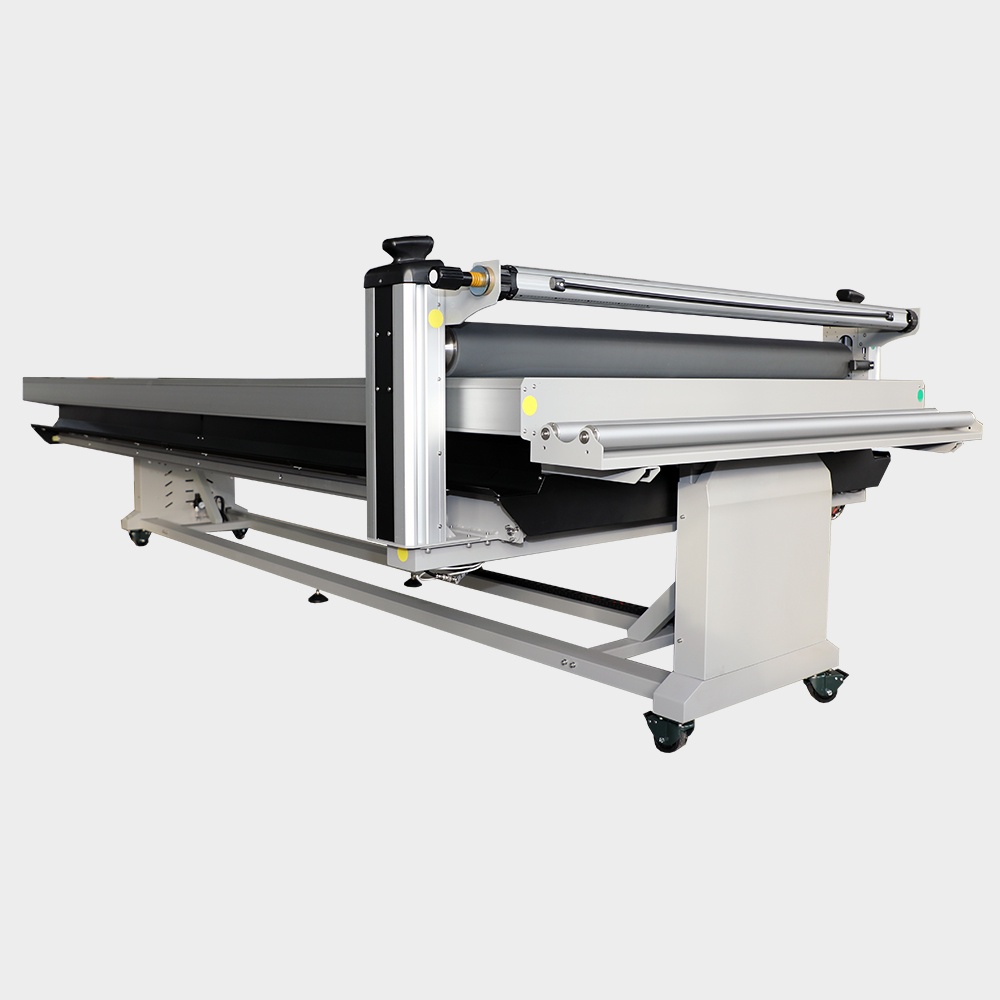

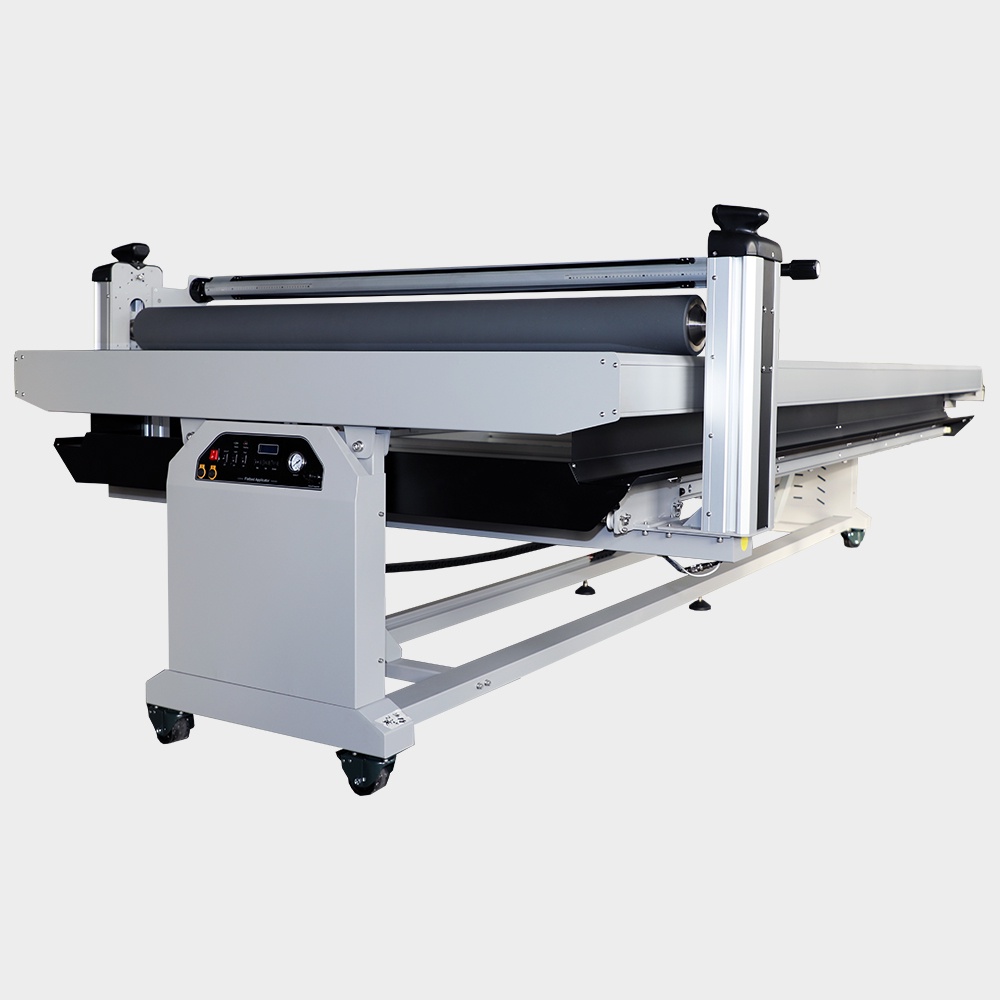

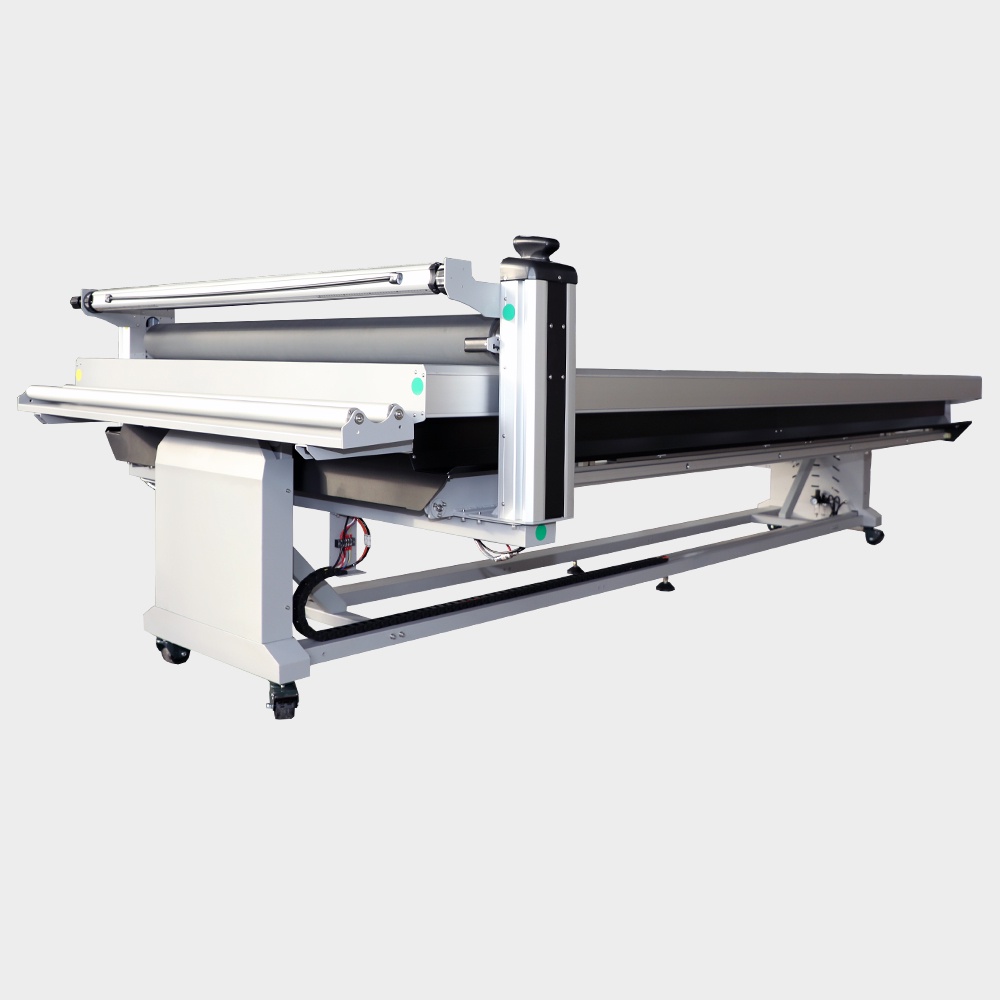

LF1325-B4 (1.32.5m/48ft) Flatbed Applicator

Max Lamination Width: 1300mm/4.26ft
Max Lamination Length: 2500mm/8.20ft
Max Lamination Thickness: 50mm/1.96”

+86 136 5371 9152

info@lefulaminator.com

Contact Us

Related Products

Product Description

Technical Data

LeFu LF1325-B4 (1.3*2.5m/4*8ft) 60C/148F Warm and Cold Flatbed Applicator Working Video

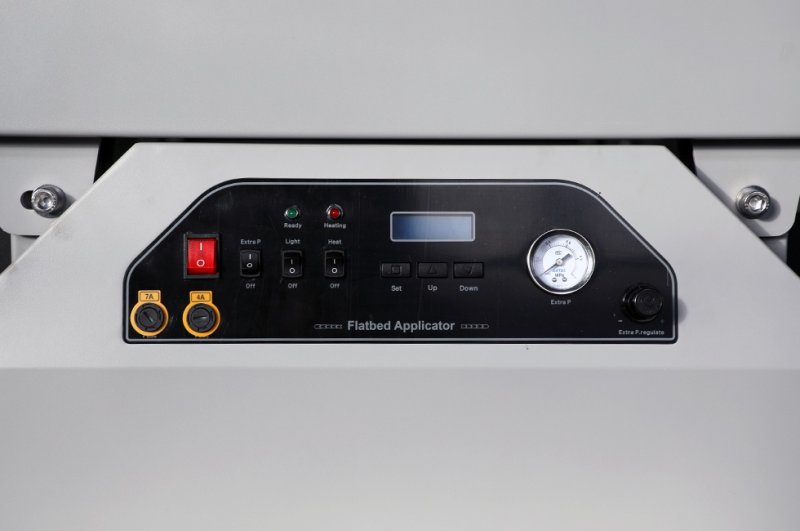

Intelligent Control Panel
LeFu LF1325-B4 Flatbed Applicator, Max Lamination Width: 1300mm/4.26ft, Max Lamination Length: 2500mm/8.20ft. Max Lamination Thickness: 50mm/1.96''Lamination Temp: 0~60°C/0~140°F, Roller Up and Down: Pneumatic Pressure.

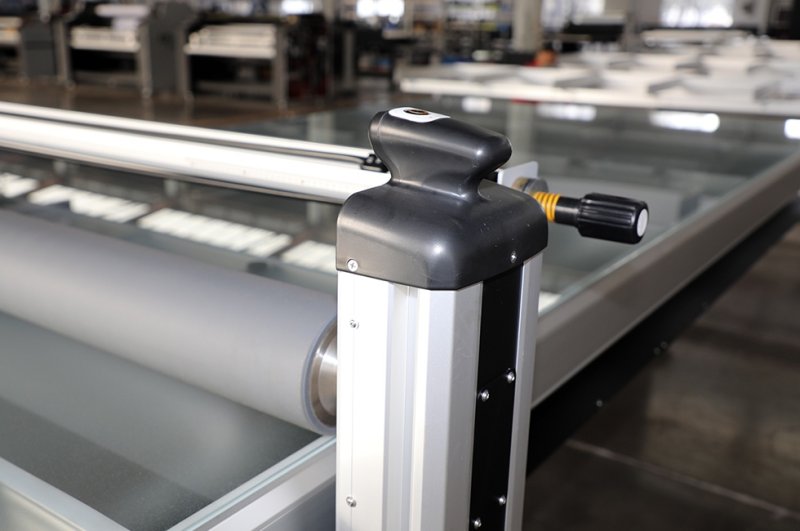

Double Pneumatic Lifting Switch

Double Pneumatic Lifting Switch features control buttons on both sides of the machine, allowing operators to raise or lower the rubber rollers from either side with ease.

Tilted Table
LeFu LF1325-B4 Flatbed Applicator, Tilted Bed design of the LeFu flatbed laminator is primarily engineered to save shipping and storage space.

Rear Media Roll Holder

Rear Media Roll Holder is mounted at the back of the LeFu flatbed laminator to securely support rolls of lamination film. It ensures smooth and continuous film feeding during operation, preventing wrinkles and misalignment.

Premium Silicone Roller
130mm diameter solid steel core wrapped with high-quality silicone. Its large size ensures even pressure distribution across the entire substrate, effectively eliminating bubbles and wrinkles during lamination.

Illumination Led Lights Under Table
This backlighting allows operators to see through translucent materials such as window films and lightbox prints, enabling precise alignment of graphics and edges.

Model	LF1325-B4
Max Lamination Width (mm/inches)	1300mm (51.18"/4.26ft)
Max Lamination Length (mm/inches)	2500mm (98.42"/8.20ft)
Table Size (mm/inches)	1400 (55.11"/4.59ft)*3000mm (118.11"/9.84ft)
Max Lamination Thickness	50mm/1.96"
Laminating Type	Flat Bed
Lamination Temperature	0~60°C/0~148°F
Diameter of Roller	130mm/5"(Silicon)
Pressure/Height Adjust	Pneumatic
Voltage	AC110V-240V 50HZ-60HZ
Working Power	Standard 1200W
Working Electric Current	12A
Certificate	CE, RCM, ROHS
Working Size (mm/inches)	341016601215mm (11.15.43.9ft)
Package Size (mm/inches)	340011401800=7.2CBM (11.13.75.9ft)
Weight (kgs/lbs)	N.W: 400kgs( 882lbs) G.W: 500kgs( 1102lbs)
