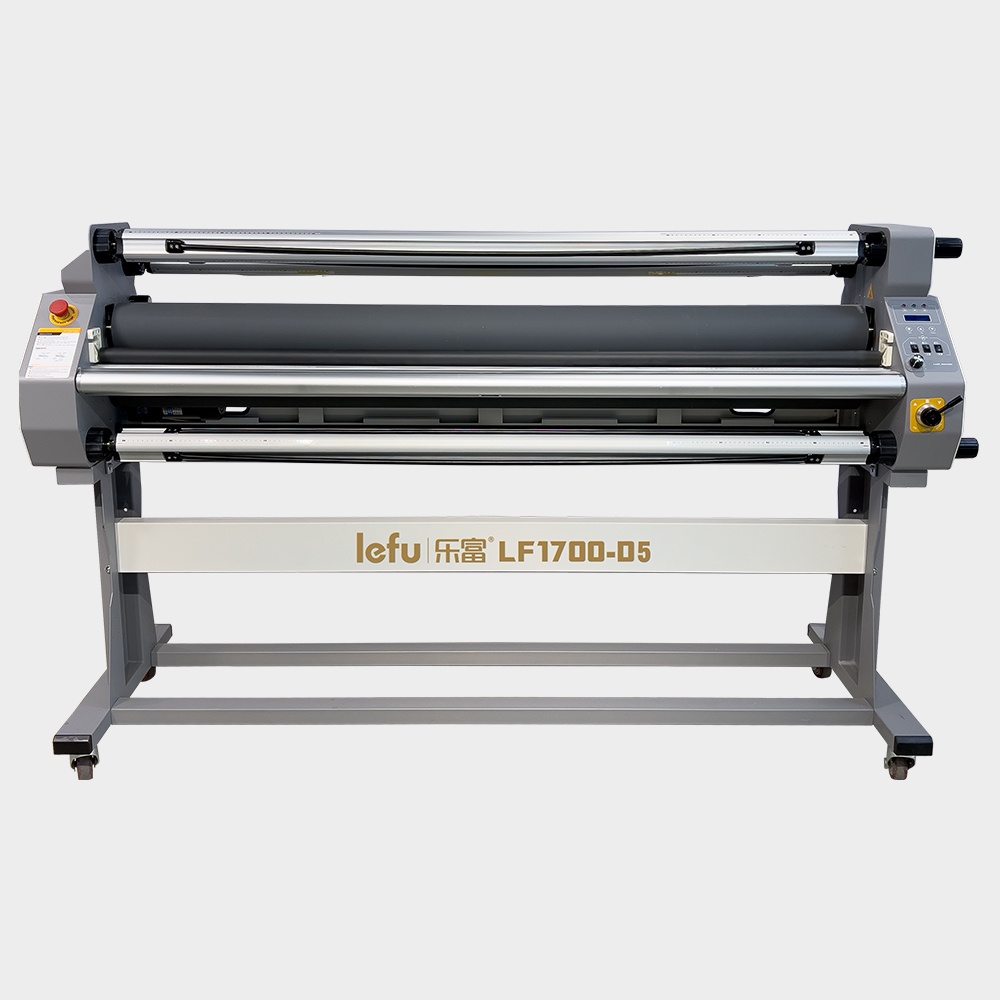

LF1700-D5 Auto Laminator (8m/min)

  • LF1700-D5 Auto Laminator (8m/min)
  • LF1700-D5 Auto Laminator (8m/min)
  • LF1700-D5 Auto Laminator (8m/min)
  • LF1700-D5 Auto Laminator (8m/min)

LF1700-D5 Auto Laminator (8m/min)

Rear Trimmer: 3 Pcs
Max Lamination Width: 1630mm/64″
Lamination Temp: 0~60°C/0~140°F
Max Lamination Speed: 8M/Minute
Roller Up and Down: Pneumatic Pressure
+86 136 5371 9152
info@lefulaminator.com
Contact Us
Related Products
Product Description
Technical Data

LeFu LF1700-D5 Automatic Warm and Cold Laminator Working Video

D5 05

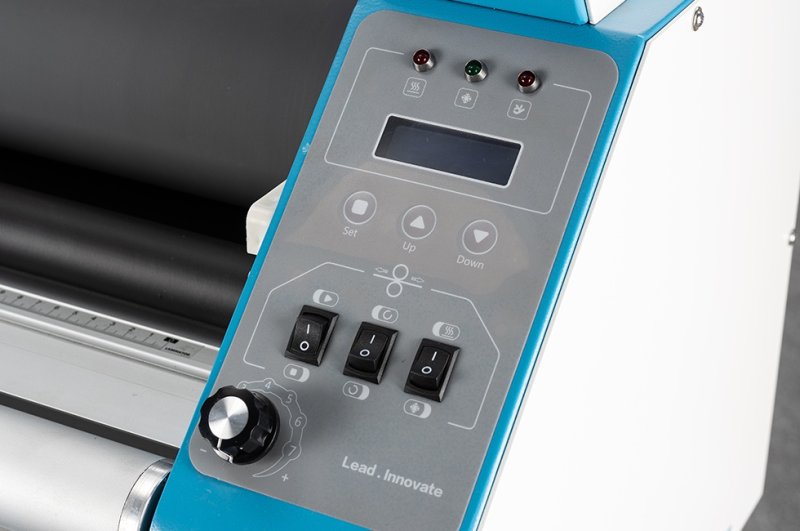

Intelligent Front Control Panel
LeFu LF1700-D5 Automatic Warm and Cold Laminator Max Lamination Width: 1630mm, Max Lamination Temp: 0~60°C/0~140°F, Max lamination Speed: 8M/Min.

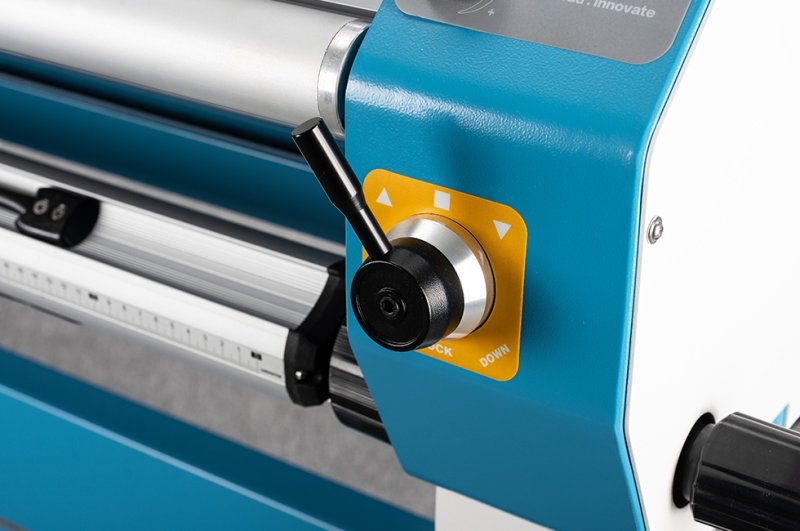

Roller Up and Down Valve

LeFu LF1700-D5 Automatic Warm and Cold Laminator with Controls the pneumatic lifting and lowering of the laminating rollers with a simple push-button or lever action. It allows operators to raise the rollers for easy material loading and position.

D5 06
2023

Premium Silicone Roller
LeFuLF1700-D5 Automatic Warm and Cold Laminator with 130mm diameter solid steel core wrapped with high-quality silicone. Its large size ensures even pressure distribution across the entire substrate, effectively eliminating bubbles and wrinkles during lamination.

Anti-Static Liner

LeFu LF1700-D5 Automatic Warm and Cold Laminator Eliminates static electricity generated during high-speed lamination, preventing film from sticking to itself or attracting dust. Ensures cleaner results and protects both the machine and operator from static discharge.

2024
2025

Aluminum Alloy Scale Bar

LeFu LF1700-D5 Automatic Warm and Cold Laminator Aluminum Alloy Scale Bar​ features built-in measurement markings along the worktable edge, allowing operators to quickly and accurately position materials without using separate rulers or tape measures.

Rear Vertical Trimmers
LeFu LF1700-D5 Automatic Warm and Cold Laminator Mounted at the back to cut excess laminate vertically along the edges after lamination, ensuring clean, straight finishes and saving manual trimming time.

2026

Model

LF1700-D5

Max Lamination Width

1630mm/64''

Laminating Type

Roll-to-Roll

Heating Roller

Top

Max Laminating Speed

8m/Min

Max Lamination Thickness

28mm/1.1''

Lamination Type

Warm and Cold

Max Temp

0~60°C/0~140°F

Roller

Silicon

Diameter of Roller

120mm

Pressure/Height Adjust

Automatic (Pneumatic Pressure)

Hand Protection Device

Safety Laser Sensor

Anti-Static

Yes

Certificate

CE, RCM, ROHS

Heating

Infrared

Preheating Time

10-15 min

Voltage

110V/220V 50/60Hz

Power Input

1400Kw/h

Package Size2260*860*720=1.4CBM (Including Air Compressor)

G.W.

240KGS


Top 9 Reasons Why Customers Choose  :

LeFu focus on Flatbed Applicator, Flatbed Laminator, Roll Laminator, Automatic Laminator from 2006.

Every year more than 4000 sets flatbed applicator, automatic laminaotrs are sold to world market.

Pre-sales team provides guidance to help customers choose laminator model based on their specific requirements.

We are looking forward to establish a cooperative, friendly  and long time relationship.

LeFu has a skilled team of engineers specializing in mechanics, pneumatics, and automation.

Remote diagnostic services on select models. Technicians can monitor machine data online, diagnose faults.

After you received the laminator, we will set up tech support group and put engineers in group.

Laminator will come with easy broken parts and installation tools box. No need order extra tools during installation.

2 years guarrante time, during guarrante time, without man made reason, we will send you parts freely.
