LF1700-F1 Auto Laminator (50m/min)

Rear Trimmer: 3 Pcs
Max Lamination Width: 1630mm/64″
Lamination Temp: 0~60°C/0~140°F
Max Lamination Speed: 50 M/Minute
Swing In & Out Air Shaft: 2 Winder/ 1 Re-winder
Max Winder & Re-winder: Winder 400mm (15.7”)/Re-winder: 450mm

+86 136 5371 9152

info@lefulaminator.com

Contact Us

Related Products

Product Description

Technical Data

LeFu LF1700-F1 Auto High Speed Automatic Laminator Working Video

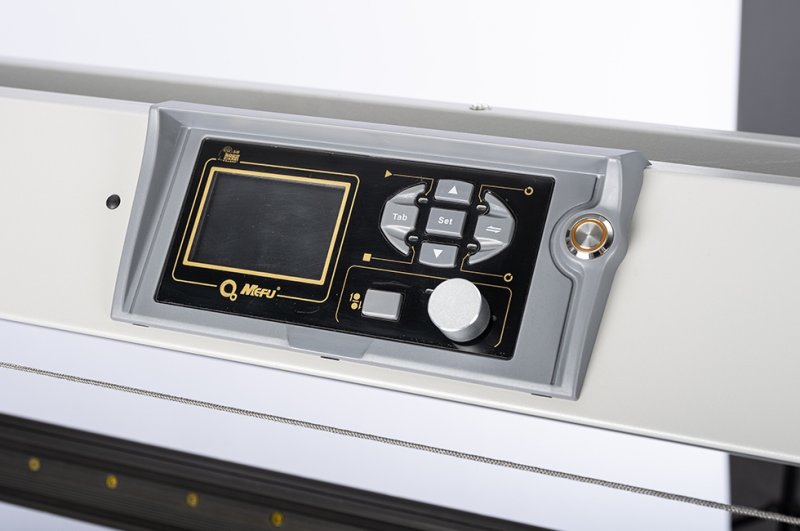

Intelligent Front Control Panel
LeFu LF1700-F1 Auto High Speed Automatic Laminator, Max Lamination Width: 1630mm/64", Max Lamination Temp: 0~60°C/0~140°F, Max lamination Speed: 50 M/Min.

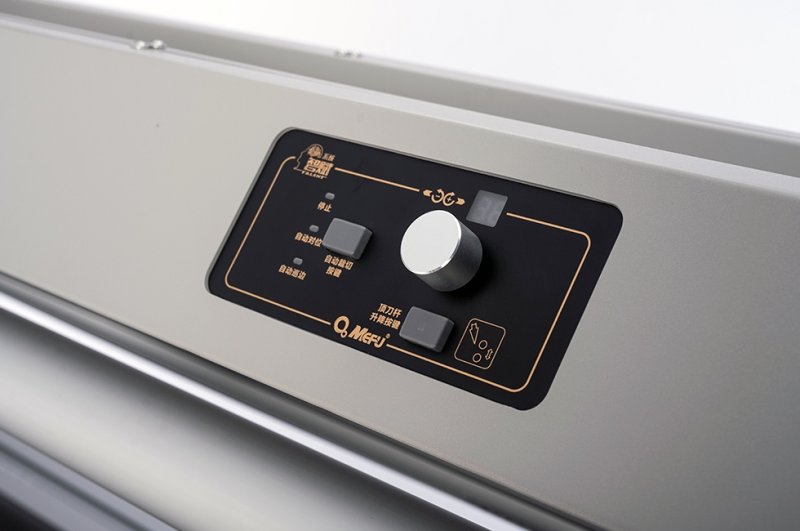

Rear Control Panel

LeFu LF1700-F1 Auto High Speed Automatic Laminator with rear-side operation of start/stop, speed, and reverse functions, improving efficiency during material unloading and trimming without walking to the front.

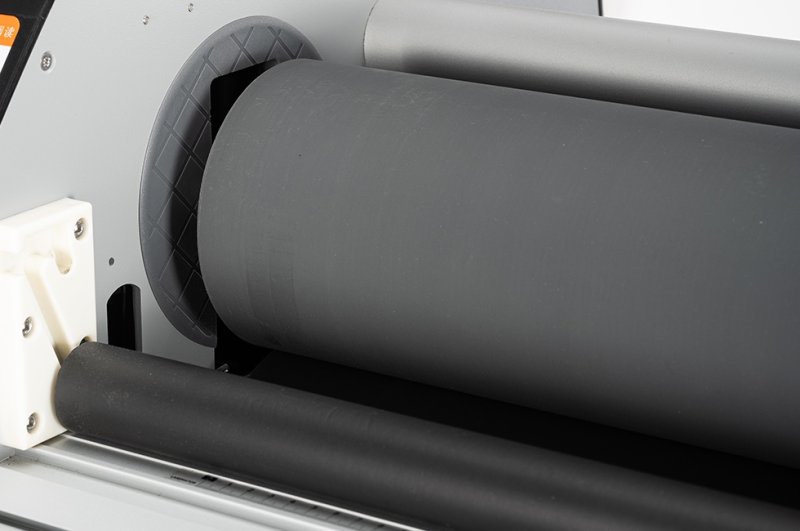

Premium Silicone Roller
LeFu LF1700-F1 Auto High Speed Automatic Laminator with 130mm diameter solid steel core wrapped with high-quality silicone. Its large size ensures even pressure distribution across the entire substrate, effectively eliminating bubbles and wrinkles during lamination.

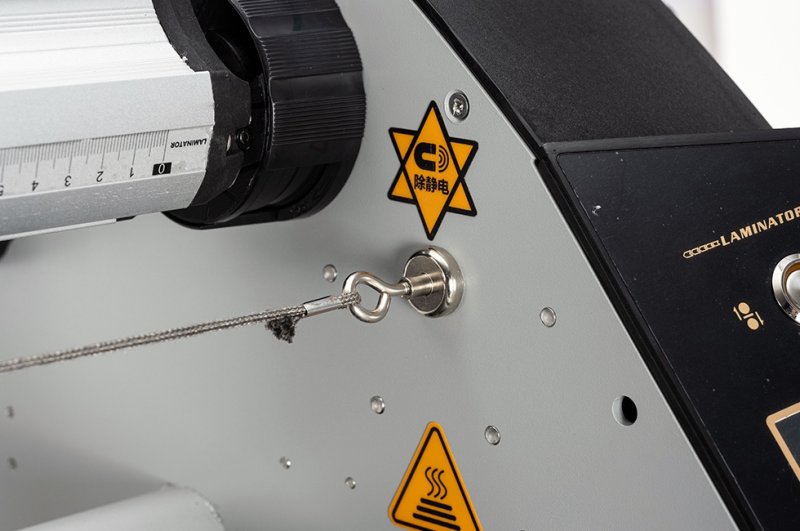

Anti-Static Liner

LeFu LF1700-F1 Auto High Speed Automatic Laminator Eliminates static electricity generated during high-speed lamination, preventing film from sticking to itself or attracting dust. Ensures cleaner results and protects both the machine and operator from static discharge.

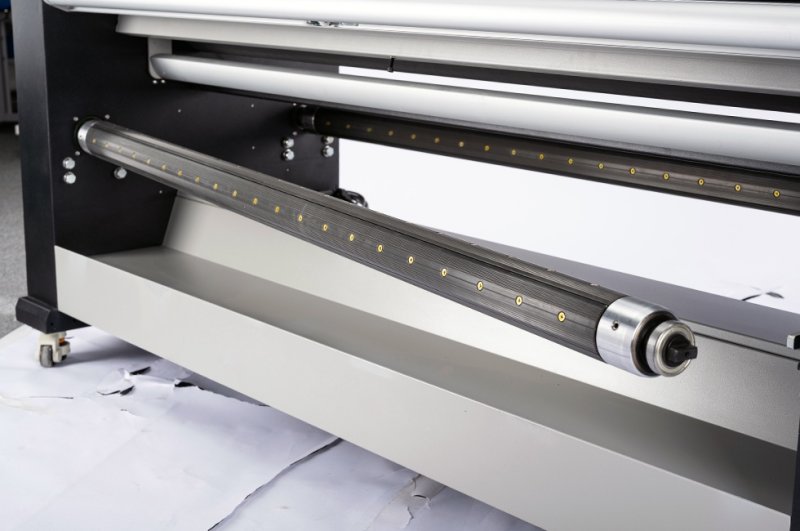

Swing In & Out Air Shafts

LeFu LF1700-F1 Auto High Speed Automatic Laminator shafts swing outward for easy roll loading and then lock back into position. Once inflated with air, they expand to grip the inner core of the film roll securely, preventing slipping during unwinding.

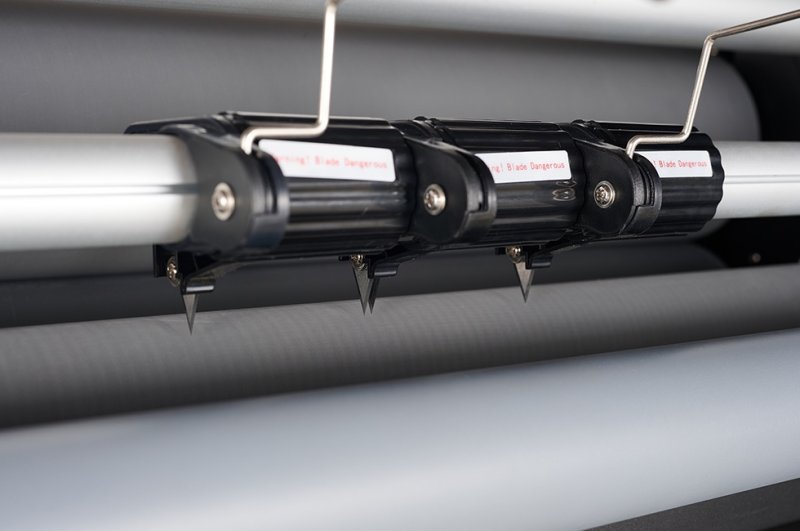

Rear Vertical Trimmers
LeFu LF1700-F1 Auto High Speed Automatic Laminator Mounted at the back to cut excess laminate vertically along the edges after lamination, ensuring clean, straight finishes and saving manual trimming time.

Model	LF1700-F1 Auto
Max Lamination Width	1630mm/64''
Rear Trimmer	3Pcs
Heating Roller	Upper
Max Lamination Speed	50 M/Min
Max Lamination Thickness	28mm/1.1''
Lamination Type	Warm and Cold (0~60°C /0~140°F)
Swing In & Out Air Shaft	2 Winder/ 1 Re-winder
Max Winder & Re-winder	Winder 400mm (15.7'')/Re-winder: 450mm (17.7'')
Diameter of Roller	180mm
Swing In & Out Shaft	2 Winder/1 Rewinder
Pressure/Height Adjust	Automatic (Pneumatic Pressure)
Hand Protection Device	Safety Laser Sensor
Anti-Static	Yes
Certificate	CE, RCM, ROHS
Heating	Infrared
Preheating Time	10-15 min
Voltage	110V/220V 50/60Hz
Power Input	2000 Kw/h 10A
Package Size	22709601650mm=3.59CBM (7.43.15.4ft)
G.W.	G.W.: 650KGS (1433lbs) N.W.: 550KGS (1212lbs)
